Lateral Displacement Between Pipes

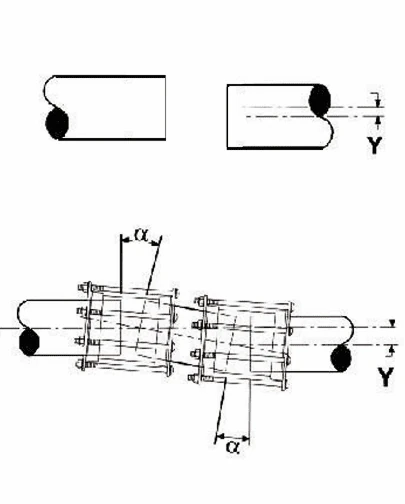

Lateral displacement between two pipes to be joined cannot be accommodated by a single coupling.
Two couplings must be used, and a small centre piece of pipe may be allowed to articulate the take-up displacement.
Centre Pipe Length Calculation
Method of calculating length of the centre pipe.
| Pipe Nominal Diameter (mm) | Minimum Length (mm) |
|---|---|
| ≤ 457mm OD | Displacement Y × 10 |
| > 457mm up to and including 610mm OD | Displacement Y × 12 |
| > 610mm up to and including 762mm OD | Displacement Y × 15 |
| > 762mm up to and including 1219mm OD | Displacement Y × 20 |
| > 1219mm up to and including 1829mm OD | Displacement Y × 30 |
| > 1829mm OD | Displacement Y × 60 |
Example
Pipe OD: 762mm
Lateral displacement to be
accommodated: 180mm
Minimum closing length: 180 × 15 = 2700mm
N.B. For KLAMFLEX Flange Adaptors, these lengths must be doubled.
