Klamflex Dedicated Flange Adaptors
Designed and manufactured to join plain ended pipe of various drilling tables with flanged equipment.
Klamflex Dedicated Flange Adaptors
Designed and manufactured to join plain ended pipe of various drilling tables with flanged equipment.
Key Specifications
Range
DN50 – DN2400
Max. Pressure
PN10/PN16
Range
DN50 – DN1800
Max. Pressure
PN25
Range
DN50 – DN1200
Max. Pressure
PN40
Product Features
- KLAMFLEX Dedicated Flange Adaptors are manufactured to join plain-ended pipe to flanged valves, fittings and pipes, obviating difficulties usually experienced with rigid connections.
- KLAMFLEX Dedicated Flange Adaptors are supplied to suit the pressure rating of the flange.
- The overall pressure rating of the assembled adaptor will be equal to that of the lower rated component, either pipe of flange.
- KLAMFLEX Restraint Flange Adaptors can also be supplied where end pull out is of concern.
-
When ordering KLAMFLEX Dedicated Flange Adaptors the following information is required to avoid the possibility of error in flange selections:
1. Pipe outside diameter.
2. Nominal bore of the flanged fitting.
3. Table drilling with standard applicable.

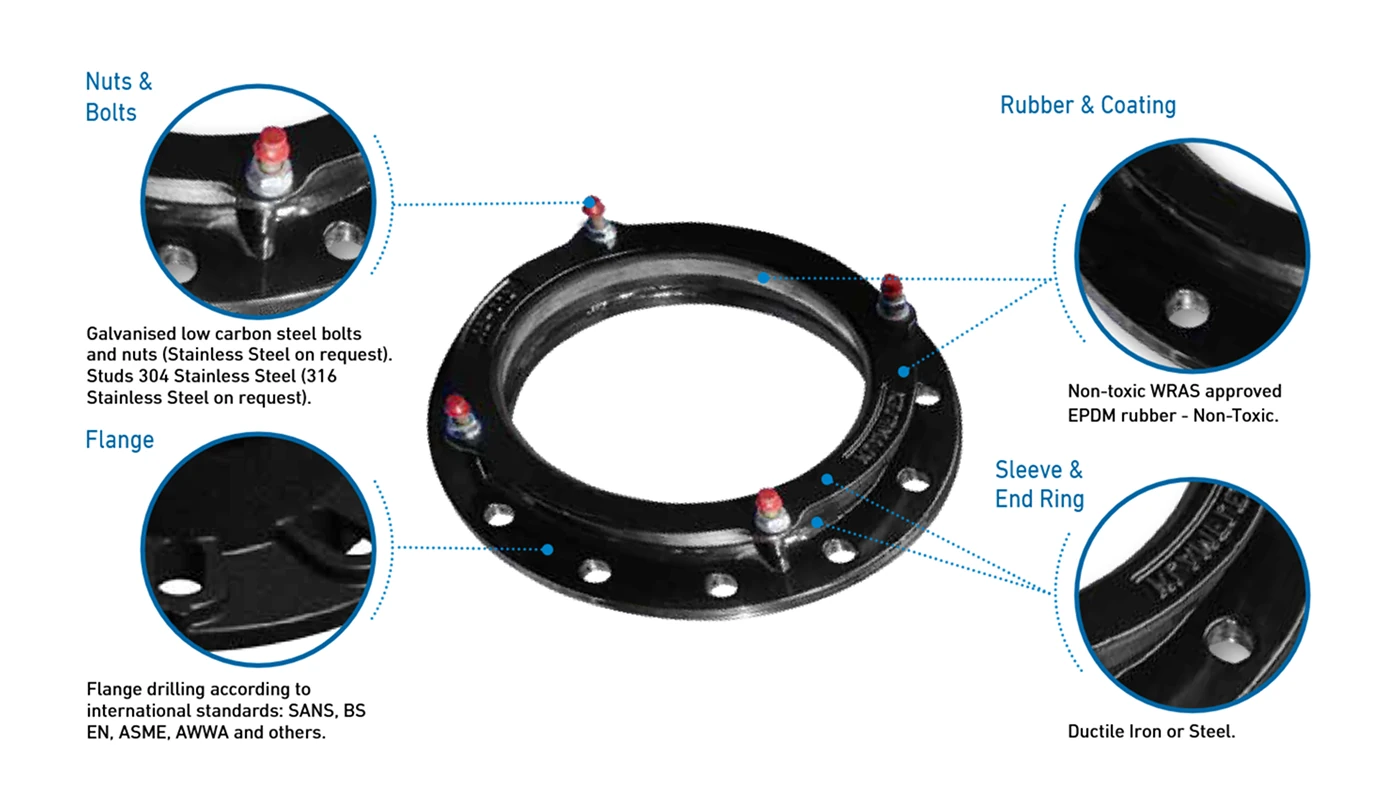

KLAMFLEX Dedicated
Flange Adaptor
Flange Adaptor
- The thickness of KLAMFLEX Flanges will not necessarily be the same as the mating flange due to the fact that the flange of the Flange Adaptor will not be subject to the full end or side thrust.
- Flanges and Flange Adaptors will not be subject to the full end or side thrust, most of which is absorbed by the flexibility in the rubber gaskets. Refer to column “T” in the attached product brochure.
- KLAMFLEX Flange Adaptors can be manufactured with full sleeves to prevent end pullout on PE, HDPE and GRP pipes.
