Cathodic Protection
Maintaining electrical continuity between connected pipes and providing cathodic protection where required to counter the interruption of current caused by the rubber sealing gasket.
Maintain electrical continuity between pipes where required
The rubber sealing gasket incorporated into the KLAMFLEX coupling interrupts the flow of current from pipe to pipe. To counter this problem, a wire or copper strap can be connected to the two pipes via the coupling.
Figure 9: The strap is welded to the pipes, without cathodically protecting the coupling.

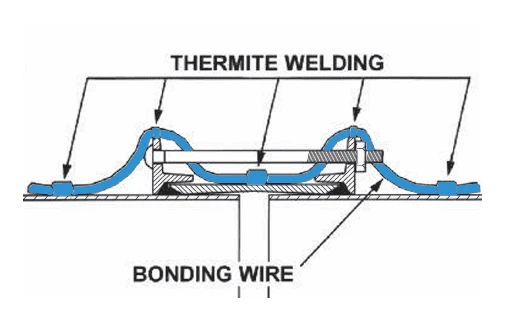

Figure 10: The strap is also welded to the coupling, providing cathodic protection.
Further Guidance
We recommend, for more detailed guidance, that contact should be made with one of the several companies specialising in cathodic protection. Bonding is equally applicable to both steel and iron pipes.
