Klamflex Dismantling Joints
Designed and manufactured to provide longitudinal adjustment in flanged pipe systems between Dismantling Joint of various drilling tables and flanges equipment.
Klamflex Dismantling Joints
Designed and manufactured to provide longitudinal adjustment in flanged pipe systems between Dismantling Joint of various drilling tables and flanges equipment.
Key Specifications
Range
DN50 – DN2400
Max. Pressure
PN10/PN16
Range
DN50 – DN1800
Max. Pressure
PN25
Range
DN50 – DN1200
Max. Pressure
PN40
Product Features

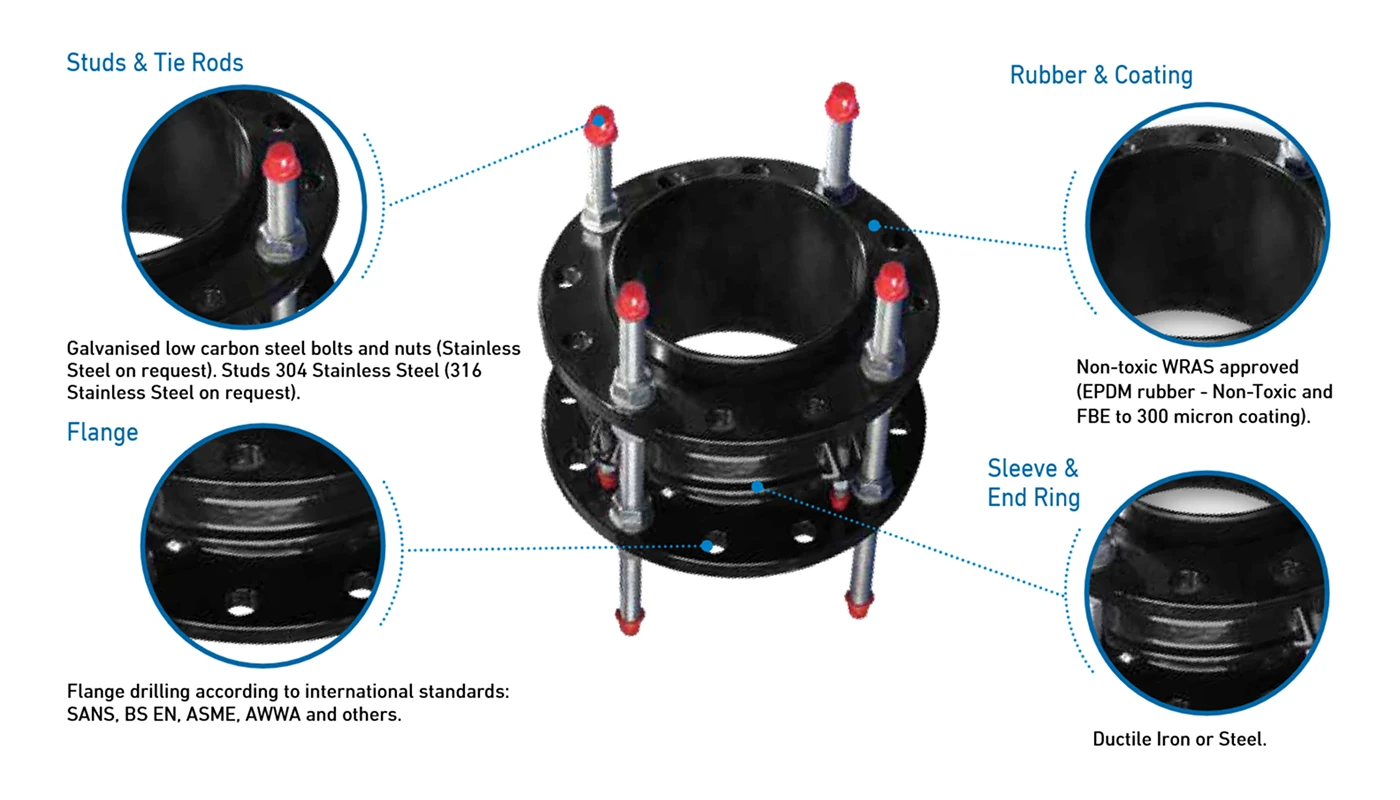

- Manufactured to AWWA C219 under quality management systems accredited to ISO 9001:2000, the KLAMFLEX Dismantling Joint assembly is a double flanged composite fitting featuring a telescopic action between a flanged spigot and a flange adaptor.
- The joint is designed to provide longitudinal adjustment in flanged pipe systems.
- Dismantling Joints provide a simple method for the installation and removal of flanged valves, pumps, flow meters, flanged pipes and pipe fittings.
- Tie rods are provided for final anchoring and location and these also double as mating flange jointing bolts, reducing the number of these required.
KLAMFLEX Dismantling Joint
- The Dismantling Joint range from KLAMFLEX extends from 50mm to 3000mm and whilst the chart indicates flange ratings of PN10/16, all common drillings are available in pressures up to 40 BAR.
- The range indicated overleaf is typical and KLAMFLEX can manufacture to specific customer specifications and dimensions on request.
- Thickness of KLAMFLEX Flanges will not necessarily be the same as the mating flange.
- Flanges and Flange Adaptors will not be subject to full end or side thrust, most of which is absorbed by the flexibility in the rubber gaskets.
- Pipe end should be smooth, with no seams, score marks, dents or ovality.
- Installation is extremely simple and is generally done with the flange adaptor end connected to the valve or other appurtenance.
- In cases where a full faced flange is required, for example on wafer butterfly valves, the joint is simply turned round to use the spigot flange instead.
